Model UV-1 System Complete

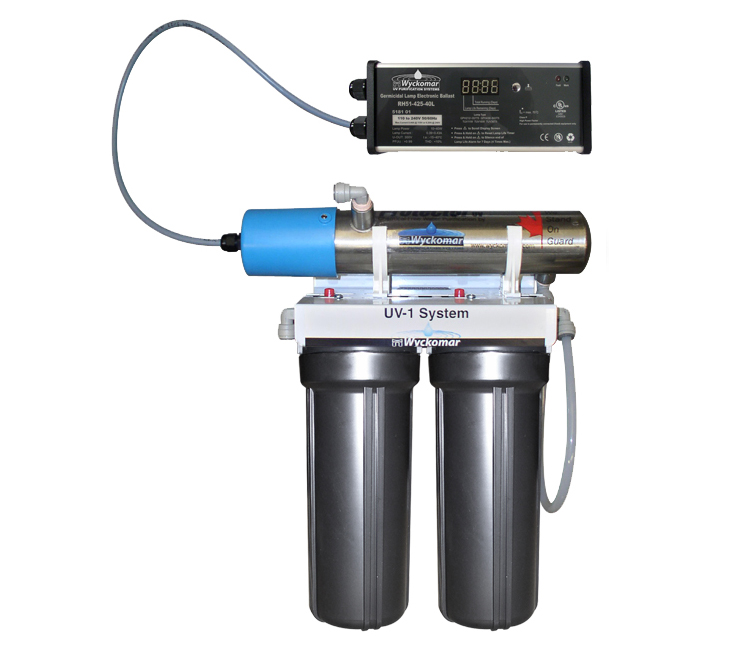

picture of the Wyckomar UV1 System

SYS1/QD4E-1/2

The SYS1 is an All-in-One Water Treatment System that is sized for the needs of the average household to provide purified drinking water at the point of use. Typically installed under the sink, it is used for treating municipal water in apartments and cottages, at laboratories or dental offices. It will purify the water from most contaminants such as sediments, rust and pesticides with filtration in 2 stages down to 0.5 micron. Carbon filtration reduces taste and odour, including sulphur smell and chlorine residuals, as well as cysts.

Harmful microorganisms such as viruses, bacteria and protozoa are killed with a powerful UV disinfection dose that will inactivate the pathogens at a kill rate of 99.99% (log4) (Giardia, E. coli, Cryptosporidium, Vibrio cholerae, Legionella, Salmonella, Shigella, Streptococcus and many others).

  • Flow Rate: (limited by filter selection)
    up to 1 GPM / 4 LPM

  • Filtration System: 10" SlimLine

  • Sediment Filter: 5 Micron Poly Spun

  • Carbon Filter: 0.5 Micron Carbon Block

  • Electronic Ballast w/ Operation Count: 4-BE-425-ECO-R

  • UV Replacement Lamp: RL-12/254T5

  • Replacement Quartz Dome: RQD-269

  • Plumbing: Saddle Valves for Installation on Exisiting Cold-Water Line

  • Includes Faucet Set

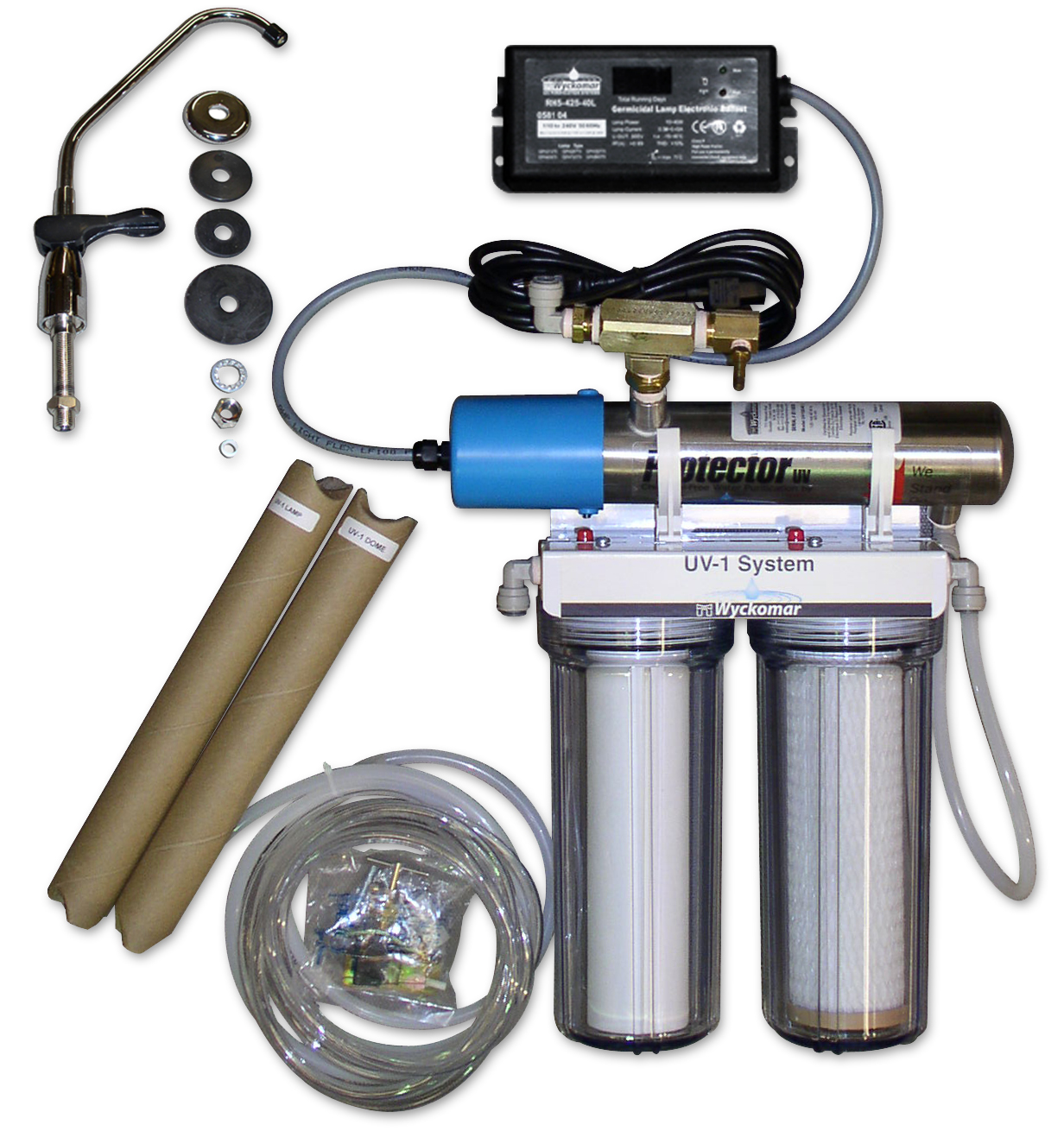

Links for more info (Specifications Sheet, Technical Drawing, Technology, System Components

specs icon Specs   drawings icon Drawing   description icon UV Technology   manual iconComponents


Pathogens that are inactivated by this UV sterilizer:
Anthrax, Chlorella, Clostridium, Coxsackie, Cryptosporidium parvum, E. coli, Giardia lamblia, Hepatitis, Influenza, Legionella, Listeria, Micrococcus, Paramecium, Polio, Pseudomonas, Salmonella, Shigella, Streptococcus, Toxoplasma, Vibrio cholerae
and many more. (See comprehensive UV Inactivation Chart)
