Model SYS5100F-3 Ultra Violet Sterilizer

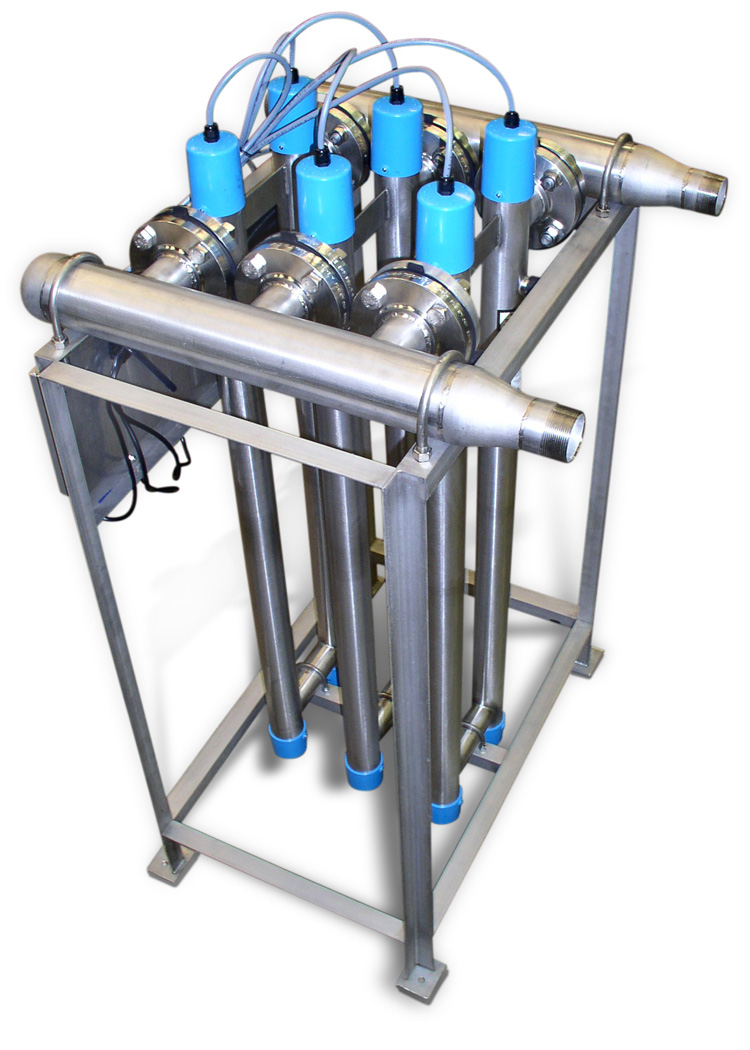

picture of the Wyckomar SYS5100F Sterilizer

SYS-5100F-3

The SYS-5100F-3 is a robust, high quality and economical ultra-violet sterilizer that offers very efficient treatment at a very low cost per unit volume. Typically installed as a component in a larger water treatment system, it can be used in all applications where safe drinking water is required. In process water applications such as rainwater harvesting, fish farming or irrigation water disinfection, this sterilizer is perfect for the reduction of harmful organisms such as viruses, fungi and protists due to its exceptinal high UV efficacy, as well as in other commercial and industrial applications, including food and beverage processing, pharmaceutical manufacturing, or cooling towers.

The SYS5100F-3 sterilizer will purify the water from most common contaminants. Bacterial, viral and other pathogens are inactivated by a high intensity UV dose that kills harmful microorganisms such as E. coli and Giardia at a 99.99% kill rate.

  • Flow Rate: 150 GPM / 567 LPM

  • Chamber Material: 316L SS

  • UV Dose: 47 mJ/cm2 at 95% UVT,
    34 mJ/cm2 at 75% UVT

  • Monitoring System: Optional

  • Electronic Ballast w/ Operation Count: 4-BE800-ECO

  • UV Replacement Lamp: RL-110/1197T5

  • Replacement Quartz Sleeve: RQS-1181

  • Plumbing: 3" MNPT In/Out (Flanges optional)


More info (Specifications Sheet, Technical Drawing, Technology Overview) can be downloaded here

specs icon Spec Sheet   description icon UV Technology Info


Pathogens that are inactivated by this UV sterilizer:
Anthrax, Chlorella, Clostridium, Coxsackie, Cryptosporidium parvum, E. coli, Giardia lamblia, Hepatitis, Influenza, Legionella, Listeria, Micrococcus, Paramecium, Polio, Pseudomonas, Salmonella, Shigella, Streptococcus, Toxoplasma, Vibrio cholerae
and many more. (See comprehensive UV Inactivation Chart)
