Model UV-5000 Ultra Violet Sterilizer

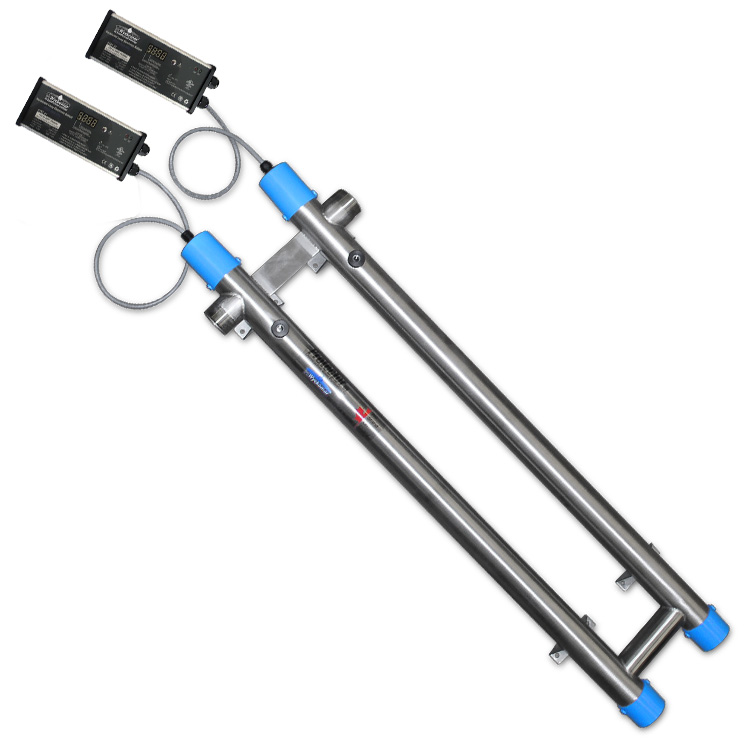

picture of the Wyckomar UV5000 Sterilizer

P5000/QS4E-1/2

The UV-5000 is a robust, high quality ultra-violet sterilizer that offers very efficient treatment at a low cost per unit volume. Typically installed at the point of entry, it can treat municipal water as well as ground water from drilled or dug wells, or surface water from lakes, ponds or rivers (pre-filtration necessary). This sterilizer is perfectly sized to provide drinking water or purified process water for commercial and light industrial applications, including food and beverage processing, pharmaceutical manufacturing, or colling towers. It is also very popular for the disinfection of pools and spa's.

The UV-5000 sterilizer will purify the water from most common contaminants. Bacterial, viral and other pathogens are inactivated by a high intensity UV dose that kills harmful microorganisms such as E. coli and Giardia at a 99.99% kill rate.

  • Flow Range: 36 - 87.4 GPM / 136 - 330 LPM

  • Chamber Material: 316L SS

  • UV Dose (95% UVT):
    16 mJ/cm2 at 87.4 GPM / 330 LPM,
    30 mJ/cm2 at 47.5 GPM / 180 LPM,
    40 mJ/cm2 at 36.4 GPM / 136 LPM

  • Monitoring System: Optional

  • Electronic Ballast w/ Operation Count: 4-800-ECO

  • UV Replacement Lamp: RL-110/1197T5

  • Replacement Quartz Sleeve: RQS-1181

  • Plumbing: 2" MNPT In/Out (50 mm BSP optional)


More info (Specifications Sheet, Technical Drawing, Technology Overview) can be downloaded here

specs icon Spec Sheet   drawings icon Tech Drawing   description icon UV Technology Info


Pathogens that are inactivated by this UV sterilizer:
Anthrax, Chlorella, Clostridium, Coxsackie, Cryptosporidium parvum, E. coli, Giardia lamblia, Hepatitis, Influenza, Legionella, Listeria, Micrococcus, Paramecium, Polio, Pseudomonas, Salmonella, Shigella, Streptococcus, Toxoplasma, Vibrio cholerae
and many more. (See comprehensive UV Inactivation Chart)
